RIDGID Tools RIDGID B-500 Portable Pipe Beveller 4″+ Pipe – 30° 55088

Ridgid

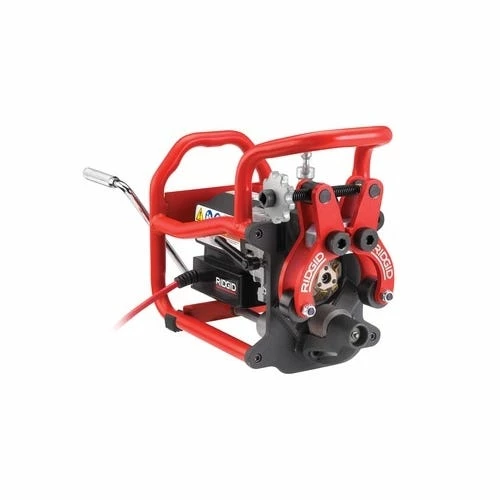

B-500 Transportable Pipe Beveller

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4 and up with a maximum wall thickness of 1/2; and creates consistent bevels in a single pass.

*Timed on a 10 Schedule 40 Pipe*

FEATURES:

Speed:

• Set-up and bevel 10 diameter schedule 40 pipe in 45 seconds!
• Pipe is cool to touch immediately following bevelling.

Consistency:

• Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
• Adjustable land width from 0″ to 3/16″ to fit welders requirements.
• Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity:

• Fast to set-up and operate.
• Patent-pending clamp system firmly secures tool to the pipe.
• Speed monitoring with led indicators for optimal cutter performance.
• Spark free operation.

SPECIFICATIONS:

Capacity	4 pipe and larger; flat plate
Pipe Wall/ Plate Thickness	Min 0.188″ (4.8 mm)/Max 0.50″ (12.7 mm)
Models Equipped with	37.5; 30 or 45 (with Optional Cutter Heads)
Cutter Head	Rated for most steel & stainless steel*
Size	15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H
Land Width	0″ – 3/16″ (4.8 mm) in approximately 1/32″ (0.8 mm) increments
Motor Type	Universal single-phase
Motor RPM	950 (no load)
Body	Steel frame

*Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials*

“
