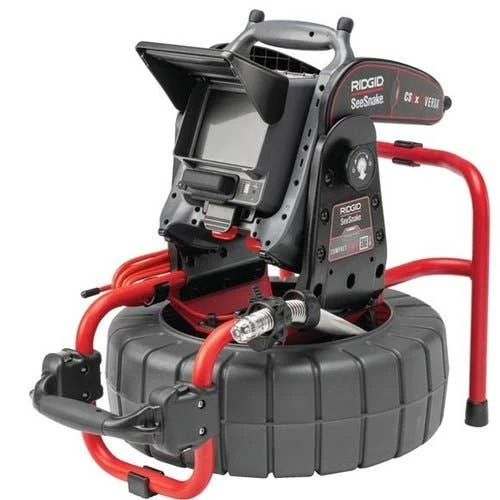

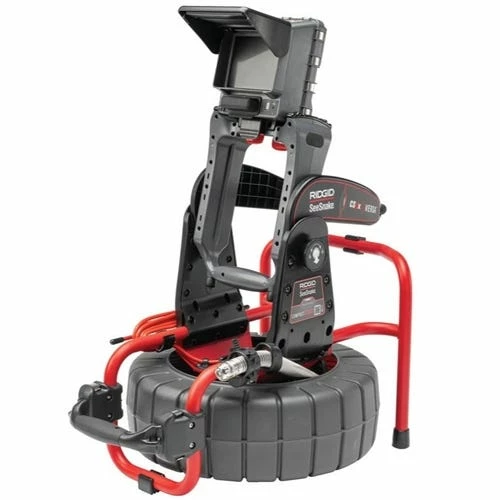

RIDGID Tools Ridgid SeeSnake 131′ Compact C40 Reel (Flexible Cable) & CS6x Versa Monitor 63823

Ridgid

SeeSnake Compact 131′ TruSense C40 Camera System 63823

FEATURES:

• Quick-release dock for the Cs6x Versa.
• Digital Recording Monitor with Wi-Fi provides fast, efficient job setup.
• Tilt the monitor to the desired viewing angle while docked or remove it for convenient job site placement.
• Self-Leveling Camera head provides an image that is always upright.
• TruSense technology features a high dynamic range (HDR) image sensor and two-way communication between the camera and SeeSnake CSx series Wi-Fi enabled monitors.
• HDR image sensor maintains color and detail in high dynamic range scenes.
• TiltSense inclinometer shows camera’s angle in-pipe on CSx series monitors.
• Download the free HQx Live app to view and record inspection jobs on your phone or tablet.
• Use the high power FleXmitter 512 Hz sonde with a RIDGID receiver to locate the camera.

INCLUDES:

• Compact C40
• CS6x Versa Monitor

COMPACT SERIES QUICK COMPARISON GUIDE:

CAMERA REEL	CAMERA HEAD	PUSH CABLE	MINIMUM BEND RADIUS	LINE CAPACITY
Compact2 Camera Reel	25 mm (1) Self-Leveling	100′ (30 m)	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact C40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact M40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	3″ (76 mm)	1.5″ – 8″ (38 mm – 203 mm)

SPECIFICATIONS:

Line Capacity	1.5″ to 6″ (38mm to 152mm)
Push Cable Length	131′ (40m)
Push Cable Diameter	0.26″ (6.6 mm)
Push Cable	Jacket Polypropylene
Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Weight (without batteries)	17.6 lbs. (8.0 kg)
Size Length	25″ (63.5 cm)
Width	14″ (35.6 cm)
Height	17″ (43.2 cm)
Camera Type	1″ (25 mm)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor	IPx5
Light Source	High-Intensity LED Sonde 512 Hz
