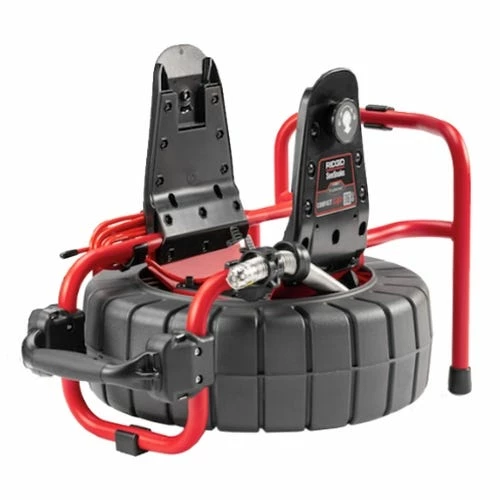

RIDGID Tools Ridgid SeeSnake Compact C40 Self-Leveling 131′ Camera – Flexible Cable (Reel Only) 63668

Ridgid

SeeSnake Compact C40 Camera (Reel Only) 63668

FEATURES:

• 25 mm self-leveling camera head provides a crisp image that is always upright
• Equipped with high power FleXmitter 512 Hz sonde which is compatible with all RIDGID locators
• Download the free HQx Live app to view and record inspection jobs on your phone or tablet
• Use with the SeeSnake CS6x Versa to create the optimal viewing angle and for fast; efficient job setup

COMPACT SERIES QUICK COMPARISON GUIDE:

CAMERA REEL	CAMERA HEAD	PUSH CABLE	MINIMUM BEND RADIUS	LINE CAPACITY
Compact2 Camera Reel	25 mm (1) Self-Leveling	100′ (30 m)	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact C40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact M40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	3″ (76 mm)	1.5″ – 8″ (38 mm – 203 mm)

SPECIFICATIONS:

Light Source	High-Intensity LED
Push Cable Length	100′ (30 m)/131′ (40 m)
Push Cable Minimum Bend Radius	2.5″ (64 mm)
512 Hz Sonde	High-power FleXmitter
Dimensions (LxWxH)	25″ x 14″ x 17″(626 mm x 360 mm x 429 mm)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Ingress Protection (without Monitor)	IPx6

“
