RIDGID Tools Ridgid SeeSnake Compact M40 Self-Leveling 131′ Camera – Stiff Cable (Reel Only) 63673

Ridgid

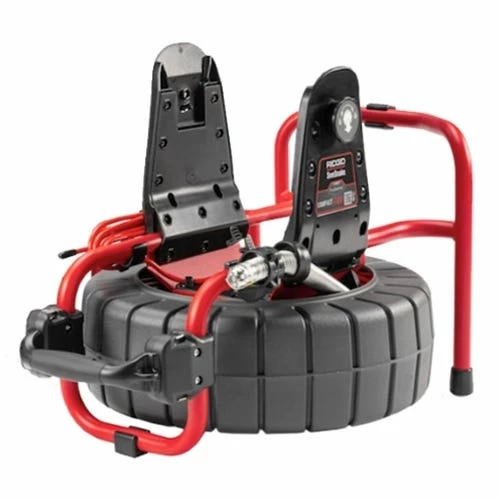

SeeSnake Compact M40 Camera (Reel Only) 63673

The Compact M40 has 131′ (40 m) of moderately stiff push cable; providing a good compromise between stiffness and the ability to navigate turns.

FEATURES:

• 25 mm self-leveling camera head provides a crisp image that is always upright
• High dynamic range image sensor provides bright; saturated images with improved detail; even in difficult lighting conditions
• Equipped with high power FleXmitter 512 Hz sonde which is compatible with all RIDGID locators
• Use with the SeeSnake CS6x Versa to create the optimal viewing angle and for fast; efficient job setup

COMPACT SERIES QUICK COMPARISON GUIDE:

CAMERA REEL	CAMERA HEAD	PUSH CABLE	MINIMUM BEND RADIUS	LINE CAPACITY
Compact2 Camera Reel	25 mm (1) Self-Leveling	100′ (30 m)	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact C40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	2.5″ (64 mm )	1.5″ – 6″ (38 mm – 152 mm)
Compact M40 Camera Reel	25 mm (1″) Self-Leveling w/TruSense Technology	131′ (40 m )	3″ (76 mm)	1.5″ – 8″ (38 mm – 203 mm)

SPECIFICATIONS:

Line Capacity	1.5″ to 8″ (38 mm to 203 mm)
Push Cable Length	131′ (40 m)
Push Cable Diameter	0.26″ (6 mm)
Push Cable Core	0.14″ (3.5 mm)
Fiberglass Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Weight (without batteries)	22 lbs. (10 kg)
Size Length	25″ (63.5 cm)
Width	14″ (35.6 cm)
Height	17″ (43.2 cm)
Camera Type	1″ (25 mm)
Frequency	512Hz
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Ingress Protection (without Monitor)	IPx5

“
