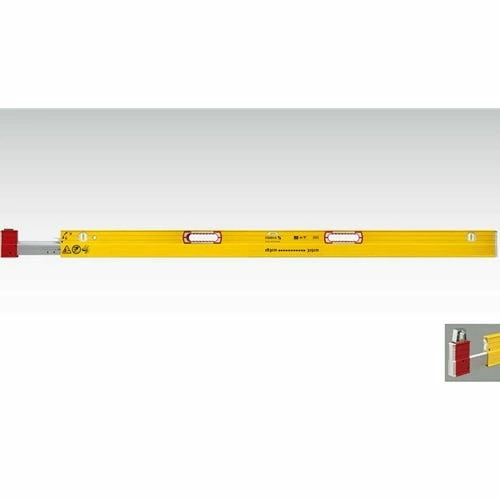

Stabila 7′-12′ Plate Level W/ Removable Standoffs STA35712

Stabila

7′-12′ Plate Level w/ Removable Standoffs STA35712

STABILA Plate Levels are designed for precisely positioning top and bottom wall plates plumb quickly. In addition; they are the best installation tools for tall doors; floor to ceiling sliding glass windows and high risk custom kitchen cabinet installations.

FEATURES:

• STABILA Type 106T Plate Levels.
• These levels extend so tall walls; tall doors and big windows can be installed properly and quickly.
• Strong reinforced frame.
• Measuring surfaces are not machined.
• Two hand grips.
• Steel hang hole for storage.
• 6 sided keyed extension rail delivers smooth and rigid operation.
• Vial accuracy guaranteed for life.
• Plumb vial always at eye level.
• 2 plumb vials; 1 level vial.
• Opposite side is a measuring surface and straight edge.
• Positioning scale on both sides of the extension raid for FAST set-ups: : 9ft 1; 10ft 1″; etc.
• The removable 1-5/8″ stand-offs included deliver accurate plate to plate measurements around braces. They simply twist-on.
• Also available in magnetic – without stand-offs.
• Carrying cases; replacement endcaps are available as optional accessories.
• Order the maintenance kit cat. number 33000 to keep the extension system operating like new.

SPECIFICATIONS:

Measurement accuracy in normal position	±1/32″ @ 72″
Measurement accuracy in reverse position	±3/64″ @ 72″
Measurement accuracy in extended normal position	±1/8″ @ 120″
Number of measuring surfaces	2
Profile	Reinforced 2 chamber profile
End caps	Standard
