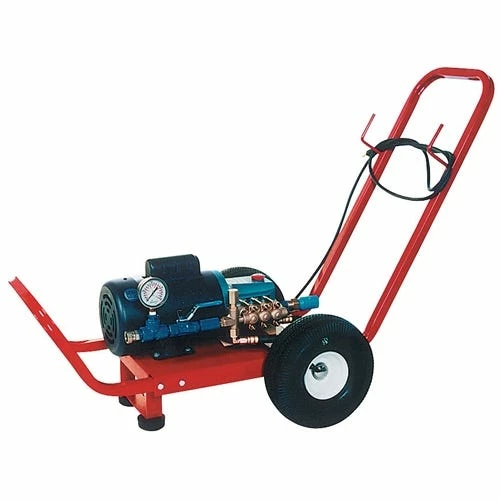

Wheeler-Rex Electric Direct Drive Triplex Plunger Hydrostatic Test Pump 115V 1000 PSI 047100

Original price was: $325.00.Current price is: $97.99.

SKU: WH047100 Categories: Wheeler Rex Hydrostatic Test Pumps, Wheeler-Rex Tag: Wheeler-Rex

We take quality seriously.
Quality Products, Quality Service
Experience Quality, Shop with Us
Multiple payment options for secure shopping with SSL

Wheeler-Rex
Electric Direct Drive Triplex Plunger Pump 1000psi 115V 047100
Automatic and precise pressure buildup
Single control sets pressure; provides automatic unloading and isolates and maintains pressure
Continuous pump lubrication
Adjustable pressure control
On two wheeled cart with pneumatic tires
Inline strainer with stainless steel mesh filter and clear bowl
Specifications:
DIMENSIONS: 28 (70cm) L x 17 (42.5cm) W x 35 (87.5 cm) H
WEIGHT: 96 lbs. 44 kg
PUMP: Triplex Piston: Positive Displacement
Inlet and outlet ports: 3/8 NPT
Capacity: 2.2gpm; 7.6lpm
Pressure: 1000psi (68 bar) max
Operating Speed: 3450rpm
Operating Temp.: 160 degree F max
Lubrication: Continuous oil bath; 11.83oz Special Cat Pump Oil
Shaft Size: 5/8 diameter
MOTOR: 1hp; 115 Electric 60hz
CONTROL: Adjustable pressure relieve valve
GAUGE: Glycerin filled; 0 2000psi (136 bar)
DISCHARGE HOSE: x 10 (3m); rated 2000psi (136 bar) working pressure
